Introduction
What is subcutaneous infusion and where is Neria™ indicated?
The following guidance can help you explain subcutaneous infusion to patients and answer their most common questions.
Subcutaneous infusion continuously delivers medication over a longer period into fatty tissue beneath the skin, where the body absorbs it. A needle penetrates the skin, leaving either the needle or a soft catheter in the tissue for up to 72 hours dependent on medication used.
Needles and cannulas can vary in length, size, features and method of insertion. Using an infusion set for continuous subcutaneous infusion requires fewer injections (insertions) compared to injection therapy.
Palliative care
Pain management is an important part of end of life care for individuals with serious illnesses where the aim is to improve quality of life.³
Parkinson's
Parkinson’s disease is a movement disorder of the nervous system that worsens over time. Certain treatments can be administered subcutaneously to provide a steady level of medication in the body.⁴
Primary immune deficiency
Subcutaneous infusion can deliver immunoglobulin (antibodies) under the skin to treat immune deficiencies, which refers to a group of either inherited (primary immune deficiencies) or acquired disorders that prevent the body’s immune system from working properly.⁵
Thalassemia
A heterogeneous group of blood disorders that affect haemoglobin. Regular blood transfusions are required to treat thalassemia, resulting in iron overload which can be treated with iron chelating drugs that are delivered subcutaneously.⁶
Neria™
Get to know our infusion sets
A basic infusion set includes an insertion needle, adhesive pad, tubing and a luer-lock connector. The specific features of each Neria™ infusion set vary, and the right set will depend on your preferences and your patient’s treatment needs.
Your choice for simplifying subcutaneous infusion
The Neria™ infusion sets are designed and approved for subcutaneous infusion in the treatment of diseases such as Parkinson’s disease, thalassemia, primary immune deficiency and pain management.⁷
Neria™ infusion sets offer:
- Thin needles (G27)
- Built-in adhesive
- Double-layer, small bore tubing to minimise drug waste and priming volumes⁷
- Reduced risk of needle stick injury (with Neria™ Guard)⁷
- Tubing disconnect at the infusion site on Neria™ Guard and Neria™ Soft
- Standard luer-lock connection

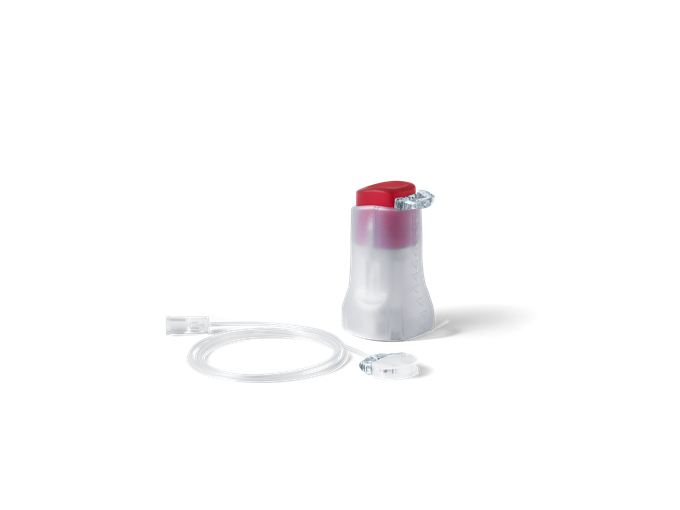

Neria™ Guard Infusion Set

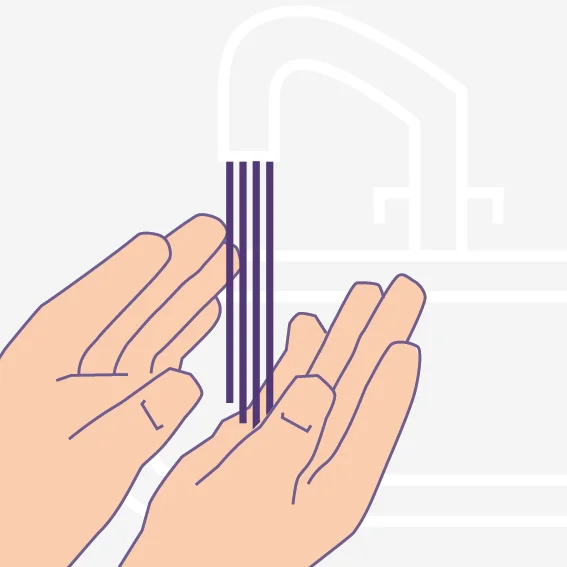

After washing your hands, clean the insertion site and leave to air dry. Note: You may need to remove hair from the area so the adhesive can properly attach to the skin.

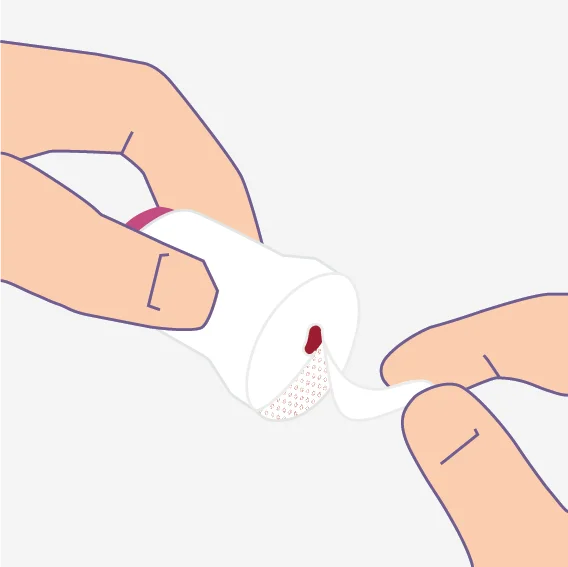

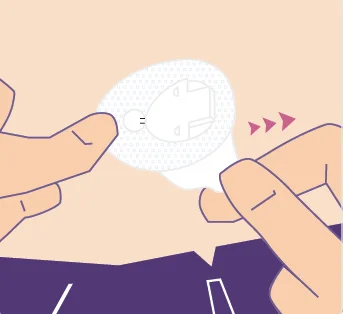

Open the Neria™ Guard package and take out the contents. Gently remove the paper from the adhesive, being careful not to touch the adhesive.

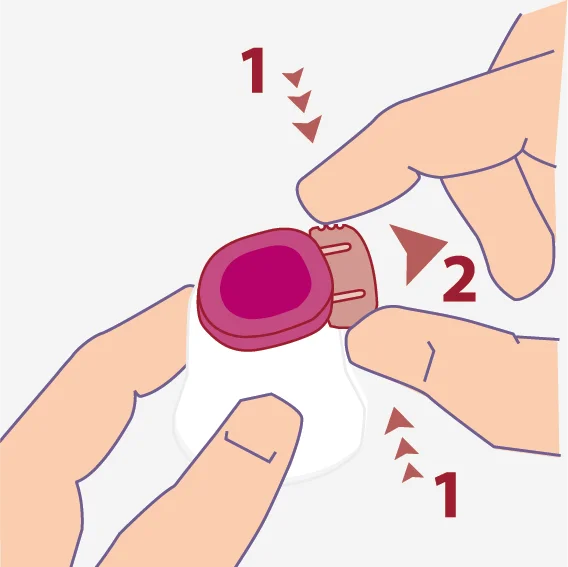

Squeeze the sides of the tab on the inserter and gently pull it out.

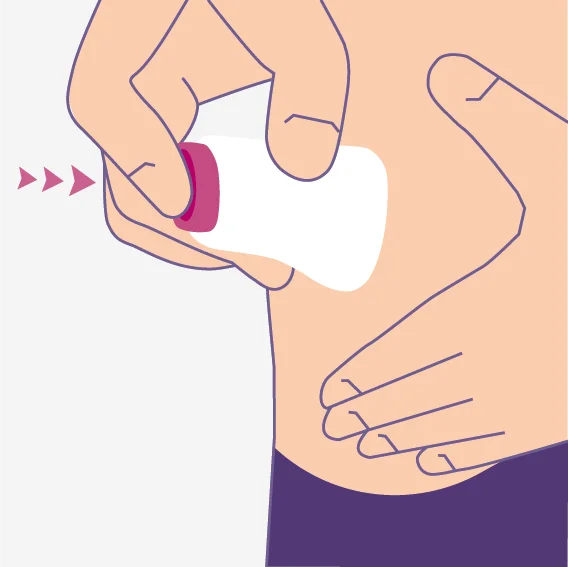

Stretch the skin so it is flat and place the insertion device on the skin before pressing the red button completely down. The insertion is complete when the device is released from the cannula housing.

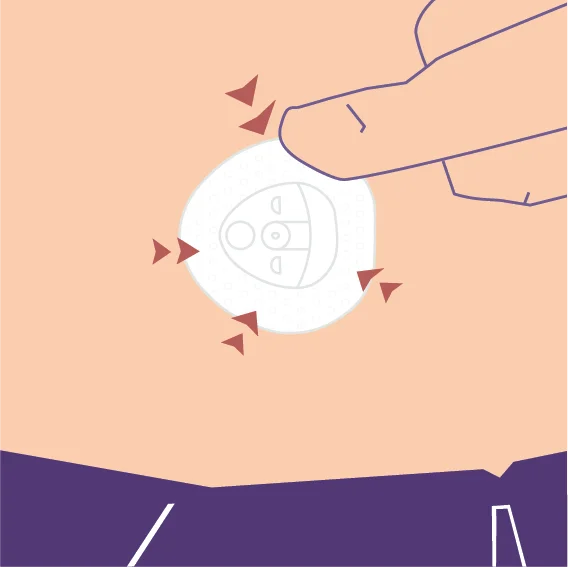

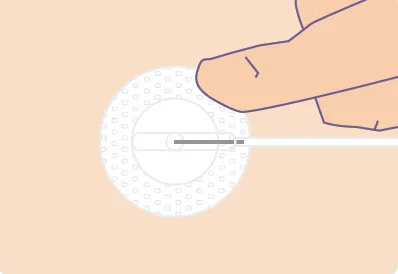

Press the adhesive tape down onto the skin
Connect to the pump and prime the tubing according to instructions provided by the pump manufacturer.

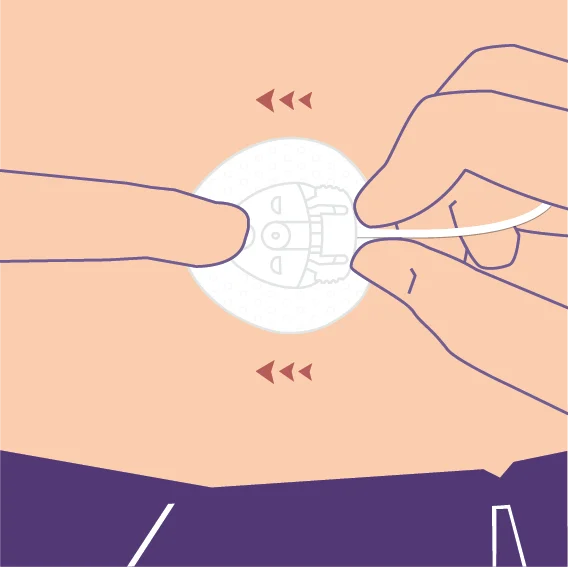

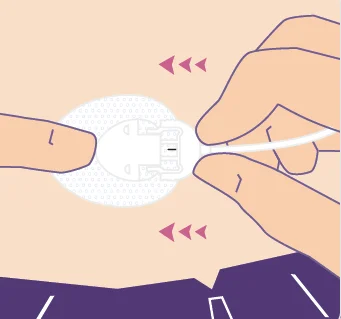

Place a finger on the cannula housing while pushing the site connector straight in until you hear a "click". Check the infusion site frequently.
Watch the demonstration video
Follow this simple step-by-step guide when using the Neria™ Guard automatic inserter.
Neria™ Infusion Set
After washing your hands, clean the insertion site and leave to air dry. Note: you may need to remove hair from the area so the adhesive can properly attach to the skin.
Prime the tubing according to pump manufacturer's instructions for use and remove the adhesive backing paper.

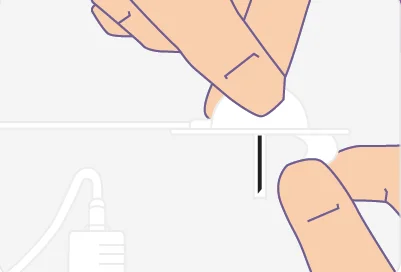

Gently twist and pull to remove the needle guard.

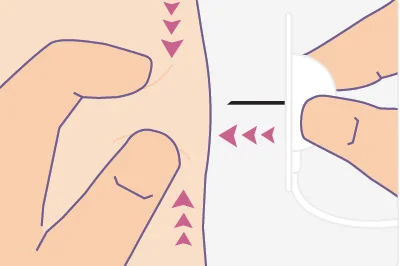

Pinch the skin with one hand and insert the Neria™ infusion set vertically.
Press the adhesive to secure the Neria™ infusion set to the skin. Check the infusion set frequently.
Watch the demonstration video
Follow this simple step-by-step guide when using the Neria™ infusion set.
Neria™ Soft Infusion Set
After washing your hands, clean the insertion site and leave to air dry. You may need to remove hair from the area so the adhesive can properly attach to the skin.

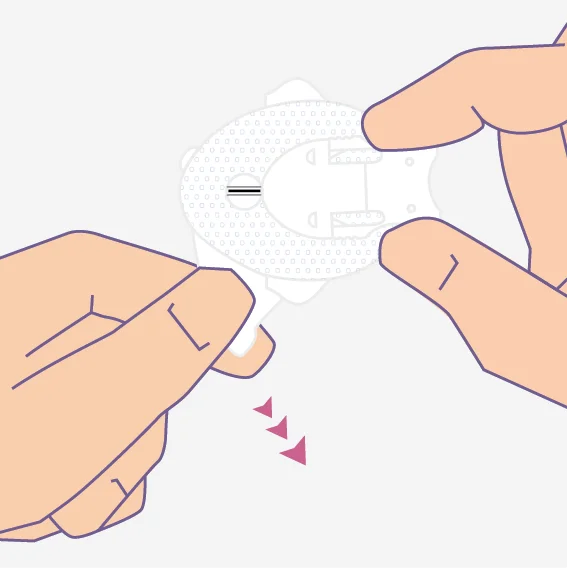

Pull gently to remove the paper from the adhesive, being careful not to touch the adhesive.

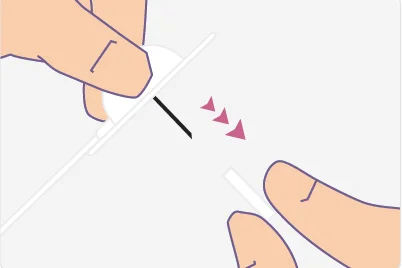

Gently twist and pull to remove the needle guard.

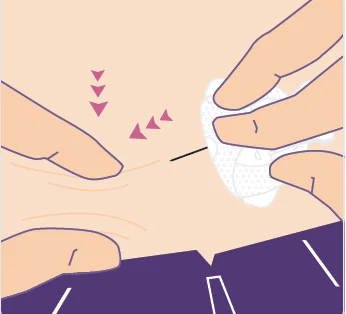

Pinch the skin with one hand and insert the Neria™ Soft infusion set at a 20-45 degree angle.

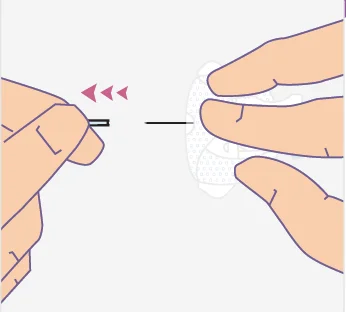

Remove the introducer needle.

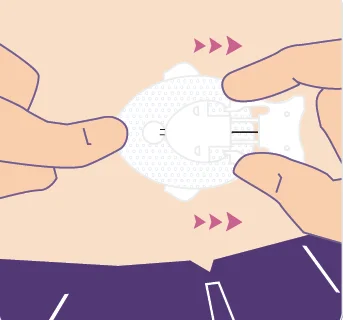

Remove the remaining adhesive backing paper, and press the adhesive onto the skin to secure.

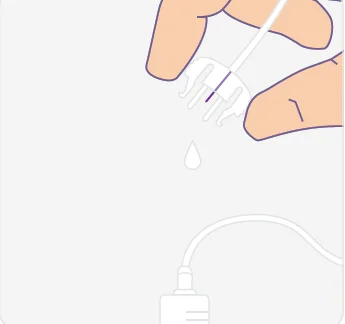

Prime tubing according to pump manufacturer's instructions for use. Insert the connector needle to connect the tubing. Check the infusion site frequently.
Watch the demonstration video
Follow this simple step-by-step guide when using the Neria™ Soft infusion set.
Neria™ Multi Infusion Set
After washing your hands, clean the insertion site and leave to air dry. Note: you may need to remove hair from the area so the adhesive can properly attach to the skin.
Prime the tubing according to pump manufacturer's instructions for use and remove the adhesive backing paper.
Gently twist and pull to remove the needle guard
Pinch the skin with one hand and insert the Neria™ Multi infusion set at a 90-degree angle (straight in).
Press the adhesive to secure the Neria™ Multi infusion set to the skin. Check the infusion site frequently. Repeat step 2-5 for all sites.
Watch the demonstration video
Follow this simple step-by-step guide when using the Neria™ Multi infusion set.
“Neria™ Guard is very easy to use and less painful for the patient. It's very easy to disconnect if the patient wants a shower, it requires no additional dressing, and it's also useful for patients with cachexia.”
NHS Clinical Nurse Specialist
“Neria™ Guard is far easier to insert than the sub-cut lines we previously used, and patients much prefer it. We've seen that it's far less painful for patients who need subcutaneous infusion.”
NHS Staff Nurse
Techniques
How to select and manage infusion sites
The following guidance can help you find the best places to insert an infusion set and how to rotate the insertion site to minimise any potential skin irritation.⁸ ⁹

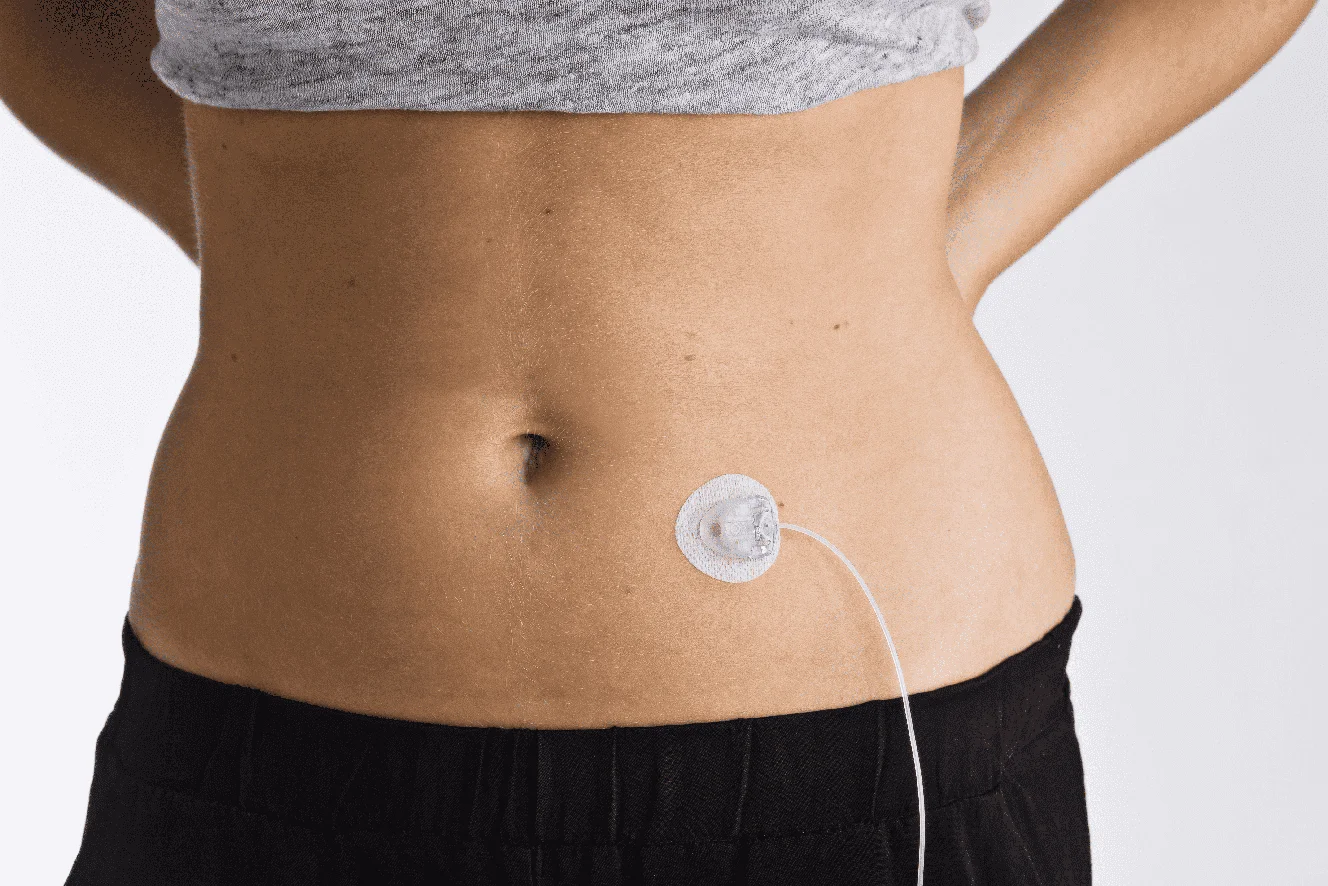

Typical insertion sites are on your lower back, abdomen, hips, buttocks, thigh or upper arm. Consider also cannula length when selecting the optimal insertion site for your patient.
Insertion tips:
- Make sure the site is clean and dry.
- Avoid sites in contact with constrictive clothing, such as a waistband, or other objects that can pull on the infusion set.
- Avoid the navel and surrounding area.
- Do not select a site that is infected, swollen, red, irritated, bruised or bleeding.
- Do not insert in an area with lumps, hard tissue or bumps.
- Do not insert into bone or muscle as this may cause pain, damage the product
and affect medication absorption.
- Remember to visually inspect the infusion set and site several times each day.
- Follow recommended hygiene procedures and ensure the site remains clean and dry.
- Change the infusion set as per drug indication.
- Do not use any creams, oils or perfumes on the site.
- Gently massage the site after use.
- If nodules occur, consider ultrasound treatment. (Henriksen, Tove, and Harry Staines. “Continuous Subcutaneous Apomorphine Infusion in Parkinson's Disease: A Single- Center, Long-Term Follow-Up Study of the Causes for iscontinuation.” Journal of personalized medicine vol. 11,6 525. 8 Jun. 2021.)
It is important to not re-use the same insertion site:
- Use a pattern, such as a clock or snake, to guide the next insertion site placement.
- Choose a site that is at least 2.5 cm away from the previous site.*
- Leave the site to rest and do not re-use until the skin has healed.
Remember, the above rotation pattern is an example only. Consult local guidelines
and select the rotation pattern that works best for the individual patient.
*IEADSG Guidelines: Insulin Storage and Optimisation of Injection Technique in Diabetes Management, Diabetes Therapy, (2019) 10:341-366
Disclaimer: Please always refer to the instruction for use which comes with the product for further information and guidance
Patient support
Equip your patients with knowledge and confidence
The following guidance can help you explain subcutaneous infusion to patients and answer their most common questions.
Sports
Wearing an infusion set doesn’t have to hold your patients back, but it’s important to take precautions to avoid issues like dislodgement or skin irritation.
Avoid placing the infusion set in a high friction area or in an area with repeated muscle movements. Sweat, movement or impact may dislodge the set or cause irritation.
It’s generally safe and beneficial to stay as active as possible but always make recommendations based on the specific needs of the patient and as assessed by the healthcare professional.
Showering and bathing
Neria™Guard and Neria™Soft allow for disconnection of the tubing and pump, prior to taking a bath or shower.
Patients can shower and bathe while wearing the infusion set. However, If the adhesive tape becomes loose, change to a new product and a new site.
Check the infusion site frequently to ensure that the soft cannula or needle remain firmly in place. If it is not in place, change to a new product and a new site.
Disconnect the infusion pump and tubing (for Neria™ Guard and Neria™ Soft only) before taking a bath or shower and make sure to check the site before reconnecting.
Work & daily life
The tubes that come with the infusion sets vary in length. Consider which length is most convenient for the patient and offers the right level of mobility.
When choosing an infusion set, consider the patients activity level. An infusion set with a disconnect option makes it easier for the patient to shower and engage in sports.

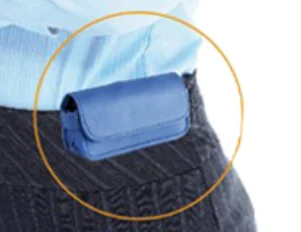

Consider the availability of custom bags for carrying the pump during activities.
On the go
When travelling, carry infusion sets in hand baggage in case of a delay and remember to carry spare sets.
Before going through security, disconnect the pump and inform security staff about the infusion pump.
Consider the availability of custom bags for carrying the pump during holiday activities such as hiking and cycling.
